New 8K HDMI Distribution Solutions from Blustream!

At Blustream we are proud to announce the availability of our latest 8K 60Hz & 4K 120Hz HDMI distribution solutions. The first four 8K solutions in the range include a 2x2 matrix, 4x1 switch, 2x4 splitter and signal manager.

Toby Leader, CTO at Blustream explains, " As the AV market evolves it's paramount that Blustream remains a pioneer of the latest technology available to our partners. The adoption of 8K and 4K 120Hz resolutions is currently expanding within the gaming and broadcast channels with the transition in the home and workplace slowly getting started. We want to ensure Blustream has the products that our partners want as the demand continues to grow ".



SM11EARC-8K

Advanced Signal Manager HDMI 2.1 HDCP2.3

• Solves most HDMI EDID, HDCP, compatibility, and handshaking issues
• Supports HDMI2.1 40Gbps specification, including HDR
• Supports up to 8K 60Hz YCbCr 4:2:0 10bit, 8K 30Hz RGB/YCbCr 4:4:4 10bit, or 4K 120Hz RGB/YCbCr 4:4:4 10bit
• Can be configured to work as either a HDMI audio de-embedder, or audio embedder
• Supports ALLM (Auto Low Latency Mode) & VRR (Variable Refresh Rate)
• Supports pass-through of all known HDMI audio formats including Dolby Atmos, Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master
• Independent audio only HDMI output for ARC/eARC audio breakout
• Embed analogue L/R 2ch audio input onto HDMI output
• Extract audio with or without an actual display connected (SM11EARC-8K acts as HDMI end-point)
• HDCP2.3 compliant, with advanced EDID management

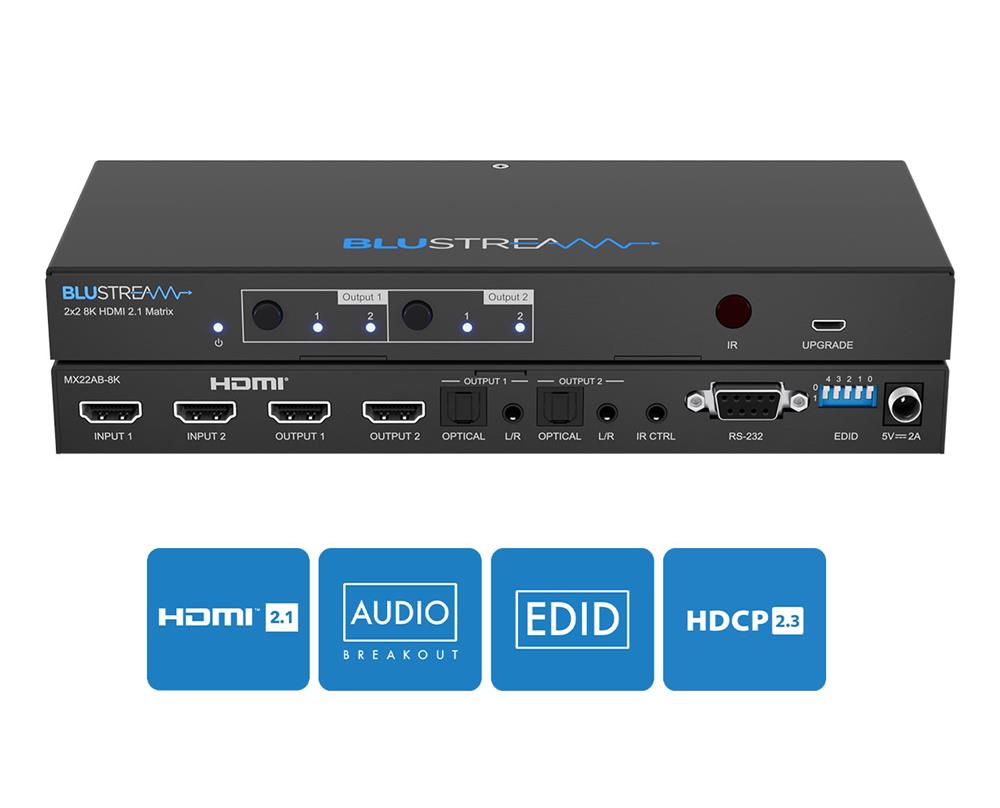

MX22AB-8K

2x2 8K HDMI 2.1 Matrix

• Features 2 x selectable HDMI inputs that can be independently routed to 2 x HDMI outputs
• Supports HDMI2.1 specification including HDR (40Gbps maximum)
• Supports up to 8K 60Hz YCbCr 4:2:0 10bit, 8K 30Hz RGB/YCbCr 4:4:4 10bit, or 4K 120Hz RGB/YCbCr 4:4:4 10bit
• Supports ALLM (Auto Low Latency Mode) & VRR (Variable Refresh Rate)
• Supports all known HDMI audio formats including Dolby Atmos, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio transmission
• Auto HDMI source switching via 5V and / or TMDS signal sensing
• Manual HDMI source switching via front panel, IR and RS-232
• Audio breakout to analogue L/R audio and optical (S/PDIF) digital outputs concurrently
• 5V / 12V IR Compatible
• HDCP 2.3 compliant with advanced EDID management



SW41AB-8K

4x1 8K HDMI Switch

• Features 4x HDMI inputs that can be switched to a single HDMI output
• Supports HDMI 2.1 40Gbps specification including HDR
• Supports up to 8K60 YCbCr 4:2:0 10bit, 8K30 RGB/YCbCr 4:4:4 10bit or 4K120 RGB/YCbCr 4:4:4 10bit
• Supports ALLM (Auto Low Latency Mode) & VRR (Variable Refresh Rate)
• Supports all known HDMI audio formats including Dolby Atmos, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio transmission
• Auto HDMI source switching via 5V and / or TMDS signal sensing
• Manual HDMI source switching via front panel, IR and RS-232
• Audio breakout to analogue L/R audio and optical (S/PDIF) digital outputs concurrently
• 5V / 12V IR Compatible
• HDCP 2.3 compliant with advanced EDID managemen



SP24AB-8K

2x4 8K HDMI Splitter

• Features 2 x selectable HDMI inputs that are split to 4 x HDMI outputs
• Supports HDMI 2.1 specification including HDR (40Gbps maximum)
• Supports up to 8K 60Hz YCbCr 4:2:0 10bit, 8K 30Hz RGB/YCbCr 4:4:4 10bit, or 4K 120Hz RGB/YCbCr 4:4:4 10bit
• Supports ALLM (Auto Low Latency Mode) & VRR (Variable Refresh Rate)
• Supports all known HDMI audio formats including Dolby Atmos, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio transmission
• Auto HDMI source switching via 5v and / or TMDS signal sensing
• Manual HDMI source switching via front panel and IR
• Audio breakout to analogue L/R audio and Coaxial (S/PDIF) digital outputs concurrently
• 5v / 12v IR Compatible
• HDCP 2.3 compliant with advanced EDID management
